Manntech’s Type 1 Compact range consists of low-maintenance, durable and fully equipped building maintenance units, ideal for buildings of uniform height. Wherever the building’s geometry allows, these proven and economical facade access systems are deployed on buildings without major protrusions or recesses and wherever there is sufficient roof space for installation of track systems or load bearing concrete runways.
NEW Improved Range
The Compact Type 1 range has recently undergone new improvements with its new refined housing made of aluminium panels. The optimised design has resulted in a 20% weight reduction and now has the lowest wheel loads in its class. Accessibility to the safety hoist unit has also been improved with access from all sides and the top of the unit. The new hoist unit also allows for operation on a smaller footprint, optimising roof space.
The rail profiles are also streamlined thanks to the low wheel loads, which means existing rail systems can be used. In addition to the new low weight, the Type 1 range of building maintenance units is now more sustainable thanks to the re-usability of tracks, allowing for new building maintenance units to be installed to existing roof structures and forego structural checks.
A new intelligent control system with soft start function increases efficiency by reducing the inrush current by 50% and increasing travelling speed by 25% for maximum operation time.
The newly improved range is available in three models:
Type 1.1: A compact BMU that runs on a horizontal track, with the potential to steer into a garage or other parking positions using a shunting car.

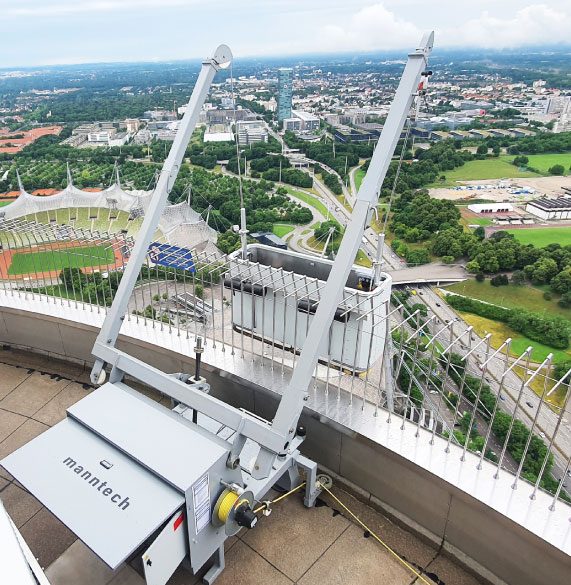

Type 1.2: A BMU with a vertical track system anchored to the roof parapet and is especially suitable for use on buildings with a load-bearing parapet and non-load bearing roofs.
Type 1.3: A compact trackless BMU on a load-bearing runway, designed to be steered into a parked position away from the building's edge.
Download the brochure below or get in touch for product selection support or a quotation.
