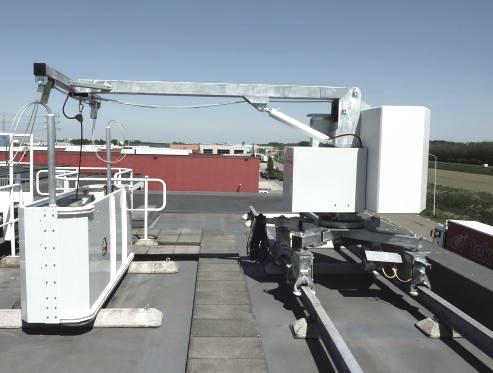

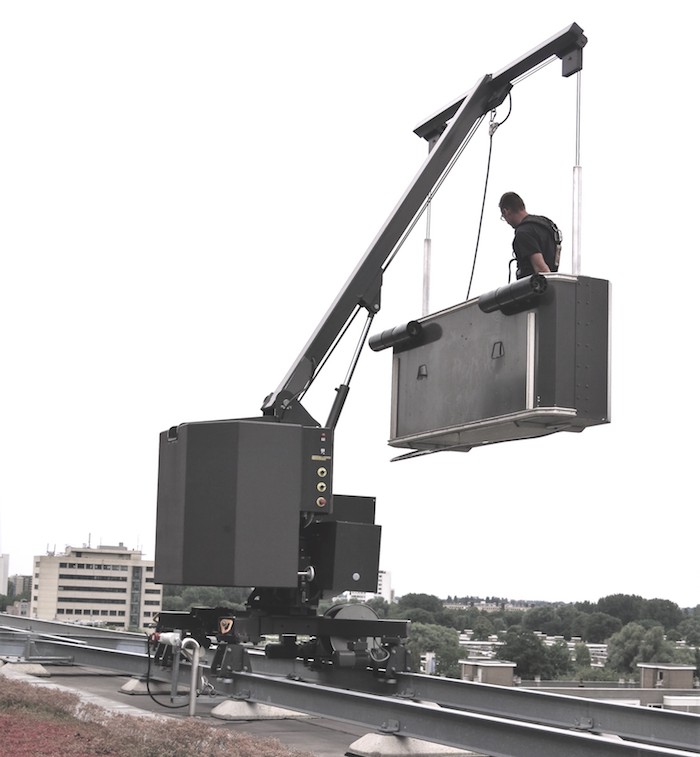

Compact Range

The Compact Range of products designed and manufactured in our facilities located in the Netherlands complete the Economic product range of Building Maintenance Units (BMUs) with economic yet high-quality access solutions for buildings with simple building geometry. The Compact range consists of low-maintenance, durable and fully equipped building maintenance systems.

Like the renowned, larger robust systems produced by Manntech in Germany, the Compact range of products also follow the same criteria of high performing functionality and safety features to last decades. Unique to Manntech’s Compact range of products are unique large traversing wheels to allow safe and durable use on uneven and soiled concrete runways or on free laid tracks. All of Manntech’s Compact range of access solutions are designed and certified according to EN 1808 standards.



Standard Equipment
  • Track gauge 1200 mm
  • On extra-large synthetic wheels for concrete runways or for tracks
  • Outreach min. 1500 mm / max. 3100 mm
  • Aluminum platform size max.: 2500x600x1000 mm (L x W x H)
  • Height coverage: 43 m
  • Type of hoist: wire rope drum hoist 4 x Ø 7.0 mm
  • Electro-powered traversing
  • Electro-powered main slewing (350 º)
  • Electro-powered hoist and descend unit on roof car
  • Min. passageway 2100 mm
Control System
  • Control panel on trolley (with joysticks) and on platform
  • End switch at slewing ring and traversing
  • Key switch selector: roof car / platform / parking
  • Power on indicator light
  • Emergency stop buttons on roof car and platform
  • 24V DC control circuit
  • Automatic circuit breaker
  • Phase sequence relay
  • Overload and slack cable devices in platform
  • Power supply cable with safety tension switch

Optional

  • Luffing system (electro-hydraulic) for variable outreach
  • Platform guidance: 1 pair restraint anchors with lanyards and 1 auto-stop
  • Version for tracks or concrete runway
